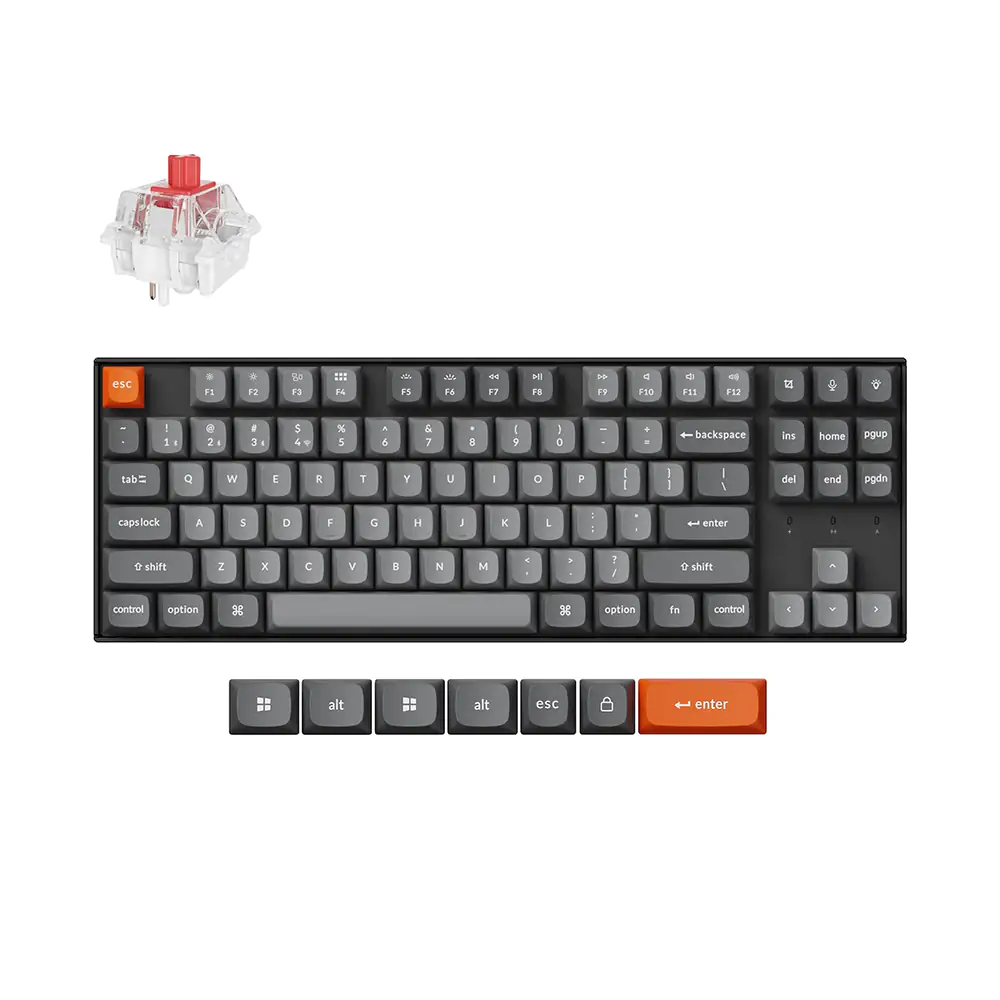

Keychron K8 Max QMK Wireless Mechanical Keyboard

Keychron K8 Max is a versatile, wireless mechanical keyboard designed for users who value performance and customization. Offering a variety of connection options—2.4 GHz, Bluetooth, and wired modes—it provides seamless versatility for both work and play. The keyboard supports advanced customization through the QMK firmware and the Keychron Launcher web app, enabling users to remap keys, create macros, and adjust shortcuts effortlessly. With its 80% TKL layout, the K8 Max is an excellent choice for users looking for a compact yet fully functional keyboard.

Connection Flexibility: 2.4 GHz, Bluetooth, and Wired

The Keychron K8 Max offers multiple connection options, including a 2.4 GHz wireless connection, Bluetooth 5.1, and wired (USB-C) mode, making it adaptable to a range of devices. The 2.4 GHz connection ensures optimal performance with a 1000 Hz polling rate, providing minimal latency even in competitive gaming. On top of that, Bluetooth 5.1 allows for simultaneous pairing with up to three devices, such as your computer, phone, and tablet, enhancing multitasking capabilities.

Customization with QMK and Keychron Launcher

Unlock the full potential of the K8 Max with QMK firmware and the Keychron Launcher web app. This open-source firmware allows for an almost limitless array of customization options, such as key remapping, macro programming, and shortcut creation. Whether you’re a developer or just someone who enjoys tailoring their setup, the K8 Max delivers the flexibility to adapt to any workflow or gaming style.

Enhanced Acoustic Design for a Superior Typing Experience

The K8 Max has been engineered with multiple layers of acoustic foams, including IXPE, PET, and EPDM, to create a typing experience that is both quiet and comfortable. The keyboard features a steel plate for responsive feedback and an overall satisfying sound profile, providing excellent key switch support and durability. This enhanced design minimizes unwanted noise and ensures that every keystroke feels solid.

Compatibility Across Devices

Designed with both macOS and Windows users in mind, the Keychron K8 Max comes with keycaps for both operating systems. It provides the same multimedia and function keys typically found on Apple keyboards, but with improved tactile feedback. Users can also configure separate keymaps for each operating system using the Keychron Launcher app, making it easy to switch between devices without any hassle.

Hot-Swappable Customization (Optional)

For those who love customizing their typing experience, the K8 Max offers a hot-swappable version, allowing users to swap out switches without any soldering. This feature supports most 3-pin and 5-pin MX-style switches, including popular brands like Cherry, Gateron, Kailh, and Panda. The Keychron Super Switches—available in Red, Brown, and Banana options—are designed for durability, with a lifespan of up to 50 million keystrokes.

Ergonomics and Keycap Design

The K8 Max comes equipped with OSA profile keycaps, which feature an OEM profile with spherical angles for added comfort during long typing sessions. These double-shot PBT keycaps offer excellent oil resistance, ensuring that the keycaps retain their texture over time. Additionally, the keyboard provides three adjustable typing angles (3.4º, 7.7º, and 10.7º) to enhance wrist comfort and reduce fatigue.

Screw-In Stabilizers and Premium Build Quality

For an even smoother typing experience, the K8 Max integrates screw-in PCB stabilizers, which offer a more stable feel, especially on larger keys like the spacebar, enter, and shift keys. The keyboard also supports third-party screw-in stabilizers for further customization. The aluminum frame (optional) provides an extra layer of durability and a premium feel, while the plastic frame version keeps the overall weight manageable.

Vibrant RGB Backlighting

The K8 Max boasts south-facing RGB backlighting with over 22 customizable lighting effects. The south-facing design enhances the RGB glow, making it more visible from the user’s angle while ensuring compatibility with Cherry-profile keycaps. The lighting can be adjusted for hue, saturation, brightness, and effect speed, offering endless possibilities to suit your mood and style.

Power and Battery Life

With a 4000 mAh rechargeable battery, the K8 Max provides long-lasting wireless use. In backlight-off mode, the battery can last up to 190 hours on a single charge. When RGB lighting is enabled, the battery life is around 100 hours at the lowest brightness setting. The keyboard charges via USB-C, offering a fast and convenient way to recharge.

Technical Specifications

• Number of Keys: 87 (80% TKL layout)
• Switch Types: Keychron Super Red, Brown, Banana
• Keycap Material: Double-shot PBT
• Keycap Profile: OSA (OEM profile with spherical angle)
• Polling Rate: 1000 Hz (2.4 GHz and wired modes), 90 Hz (Bluetooth mode)
• Connectivity: 2.4 GHz, Bluetooth 5.1, USB-C wired
• Battery: 4000 mAh, rechargeable Li-polymer
• Dimensions (Plastic Frame): 354.21 x 124.18 mm (13.94 x 4.89 inches)
• Dimensions (Aluminum Frame): 359.20 x 129.20 mm (14.14 x 5.09 inches)
• Weight (Plastic Frame): 1158 g / 2.55 lbs
• Weight (Aluminum Frame): 1308 g / 2.88 lbs
• Height: 35.32 mm (1.39 inches) front, 43.09 mm (1.70 inches) rear
• Typing Angles: 3.4º, 7.7º, 10.7º
• MCU: ARM Cortex-M4 32-bit STM32F402 (256 KB Flash)
• Operating Temperature: -10 to 50℃
